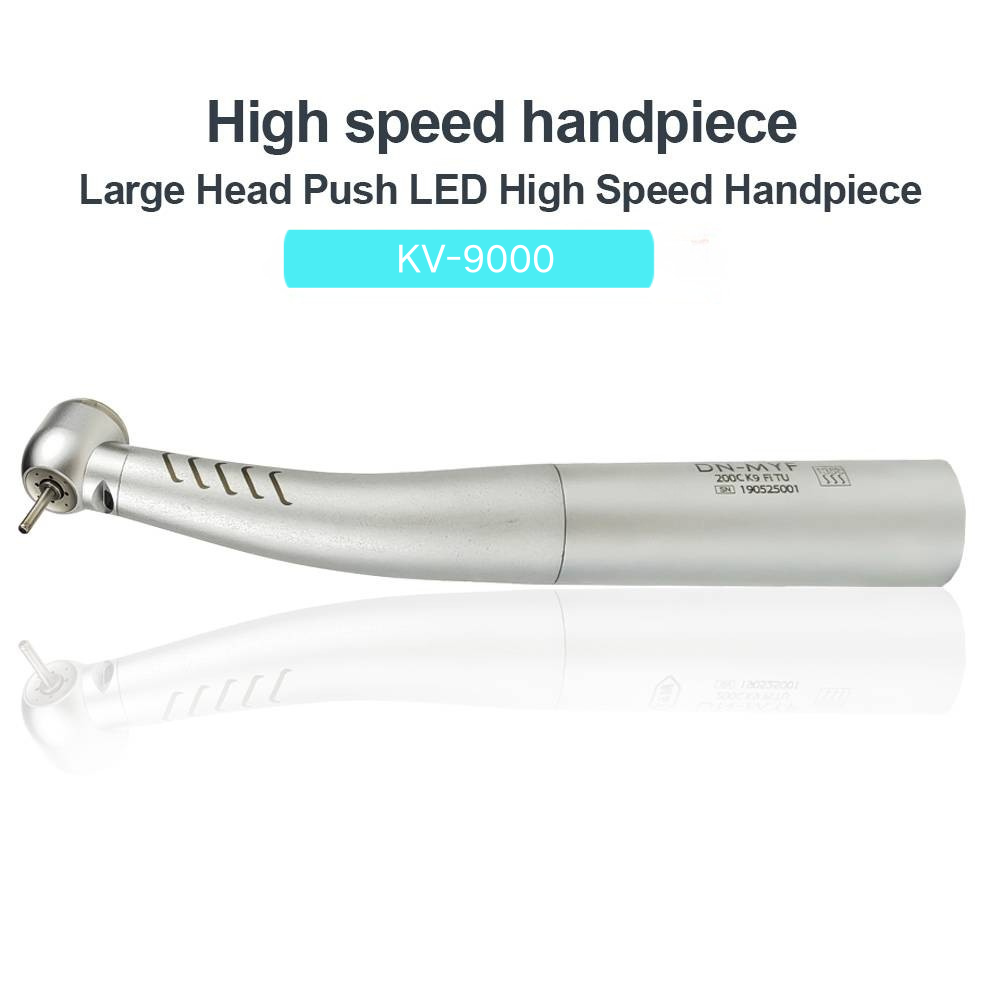

INSADENTAL KV-9000 Large Torque Fiber Optic High Speed Dental Handpiece | 4-Water Spray Turbine Handpiece

INSADENTAL KV-9000 large torque push-button fiber optic high speed dental turbine handpiece is designed for heavy-duty clinical cutting, full crown preparation and posterior molar restoration. It conforms to international medical technical standards and meets public hospital tender procurement requirements. Equipped with four-way surrounding water cooling, high-transmission shadow-free fiber optic LED lighting, silent high-speed ceramic bearings and lightweight anti-slip stainless steel body. It supports 2/4/6-hole KV quick couplers, delivering stable and durable performance for long-hour daily clinical operation.

Core Product Advantages

Large Torque Head + 4-Way Full Surround Water Spray

The wide torque head generates stronger cutting force for large-area tooth grinding. Four evenly distributed water outlets fully wrap the bur, rapidly dissipate cutting heat, avoid pulp overheating and ease patient discomfort during heavy trimming work.

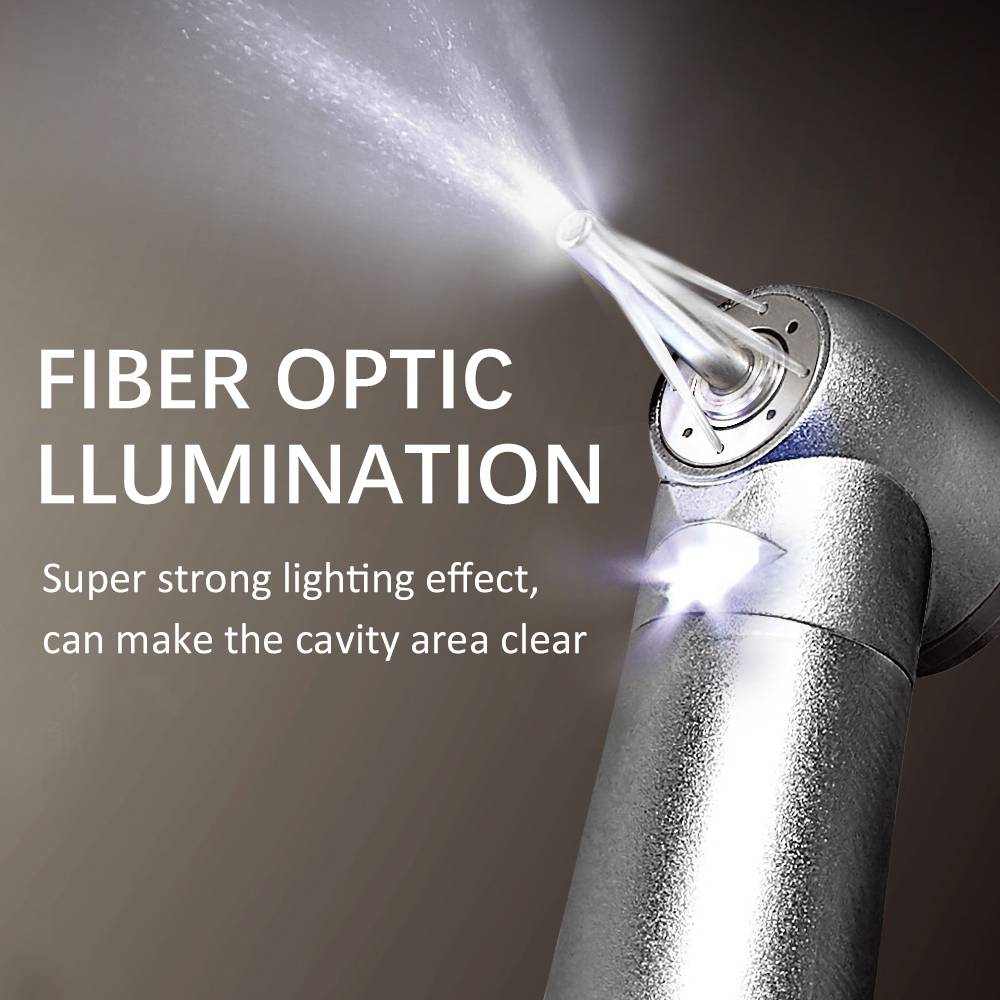

High Bright Shadow-Free Integrated Fiber Optic LED Illumination

Built-in high-efficiency light guide fiber delivers natural shadowless bright light. Tiny deep cavities and molar margin details can be clearly displayed to support precise restorative treatment.

Push Button Quick Bur Chuck Mechanism

Tool-free one-click bur loading and unloading. Stable clamping force supports dental burs up to 27mm long. No bur shaking or falling off under high-speed rotation, convenient for frequent bur replacement.

Premium Silent Ceramic Ball Bearing Cartridge

Precision ceramic rotor ensures stable maximum rotation speed at 360,000 RPM. Ultra-low vibration and noise ≤60dB(A), effectively relieving wrist fatigue during full-day clinical work.

Ultra-Lightweight Anti-Slip Stainless Steel Body

Integral medical stainless steel shell with anti-slip texture. Total weight less than 42g, wear and corrosion resistant. Supports repeated 135℃ high-temperature autoclave sterilization.

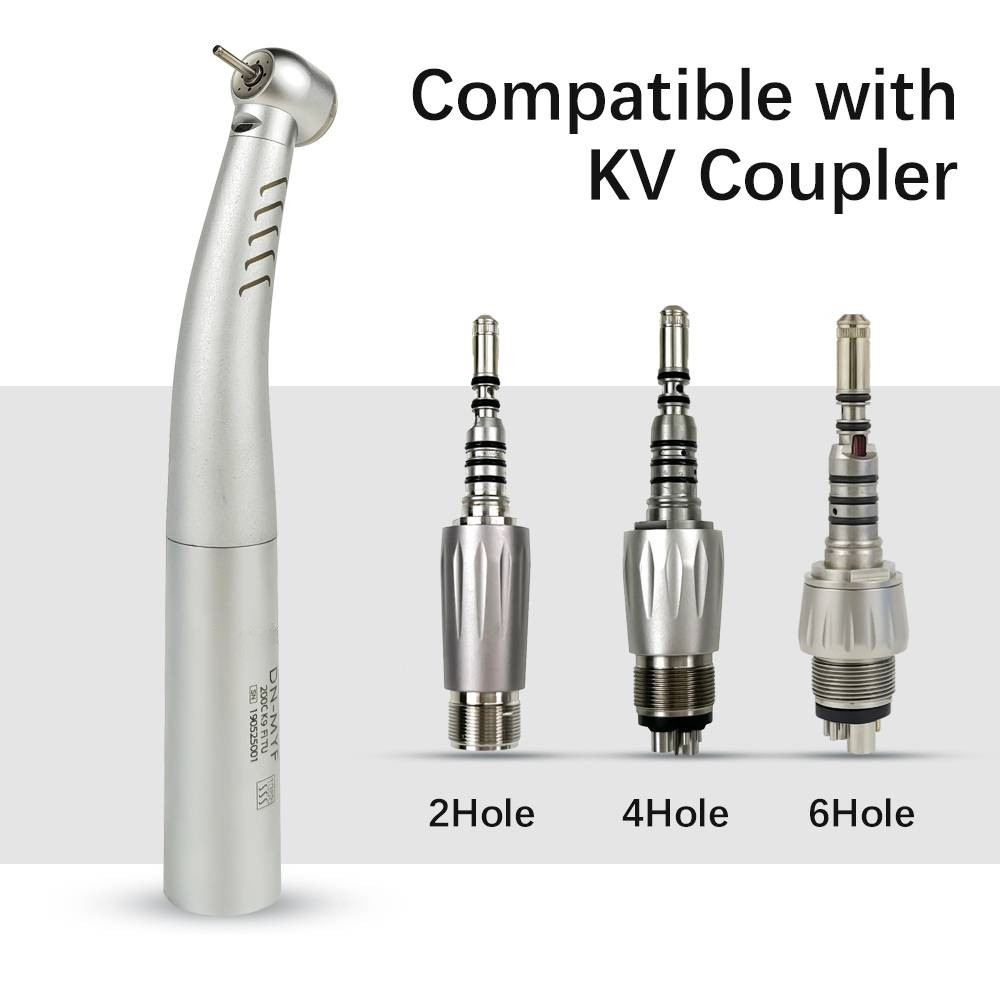

Universal KV Quick Coupler Compatibility

Three optional connectors: 2-hole / 4-hole / 6-hole KV fiber optic coupler. Stable air and light transmission, fully compatible with mainstream dental chair units and automatic handpiece cleaning & lubrication equipment without damaging internal turbine components.

Technical Specifications

Model: KV-9000

Product Type: Fiber Optic High Speed Dental Turbine Handpiece

Head Type: Large Standard Torque Head

Cooling System: 4 full-circle surrounding water spray

Bur Lock: Push button chuck type

Max Rotation Speed: 360,000 rpm

Bearing: High precision silent ceramic ball bearing

Noise Level: ≤60dB(A)

Light Source: Built-in fiber optic LED light

Working Voltage: 2.9V–3.0V

Working Current: 160mA

Compatible Coupler: 2-hole / 4-hole / 6-hole KV fiber optic quick coupler

Body Material: Medical grade stainless steel

Net Weight: Less than 42g

Sterilization Standard: Autoclavable at 135℃ repeatedly

Clinical Application Scenarios

Daily treatment in dental hospitals, private general dental clinics, cosmetic restorative dentistry, full crown & bridge preparation, posterior molar trimming, heavy-duty tooth cutting, government public medical procurement & tender projects.

Package Contents

1 × INSADENTAL KV-9000 Large Torque Fiber Optic High Speed Handpiece

Optional matching 2/4/6-hole KV quick coupler

Professional maintenance accessories

Custom marking service is available. We can supply complete tender documents including technical datasheets and dealer authorization letters. Bulk orders are acceptable, and matching spare turbine rotors can be supplied with stable delivery schedule.
