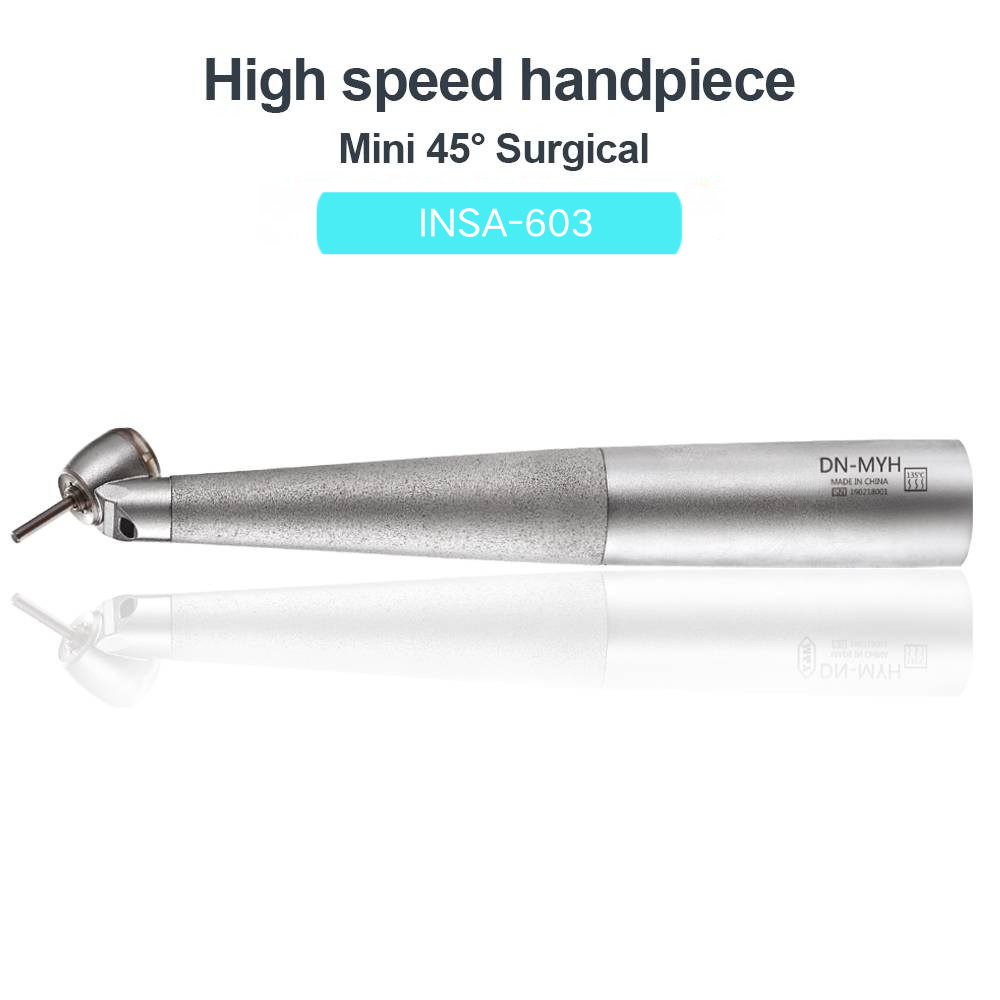

INSADENTAL INSA-603 Mini 45° Surgical Fiber Optic High Speed Dental Handpiece | Single Water Spray Air Turbine

INSADENTAL INSA-603 mini 45-degree surgical fiber optic high speed dental handpiece is specially developed for oral surgery and impacted wisdom tooth extraction. It adopts built-in shadow-free fiber optic LED light, wear-resistant silent ceramic bearing and single water spray cooling system, equipped with push button bur lock. Optional 2-hole / 4-hole / 6-hole quick couplers are available. It complies with Class II medical safety standards, delivering stable and reliable performance for long-term surgical clinical treatment.

Core Product Highlights

1. 45° Mini Special Surgical Head

   Unique angled mini head expands the operating visual field, easily reaching deep wisdom tooth regions. Ideal for impacted molar extraction, oral surgery and minimally invasive cutting procedures.

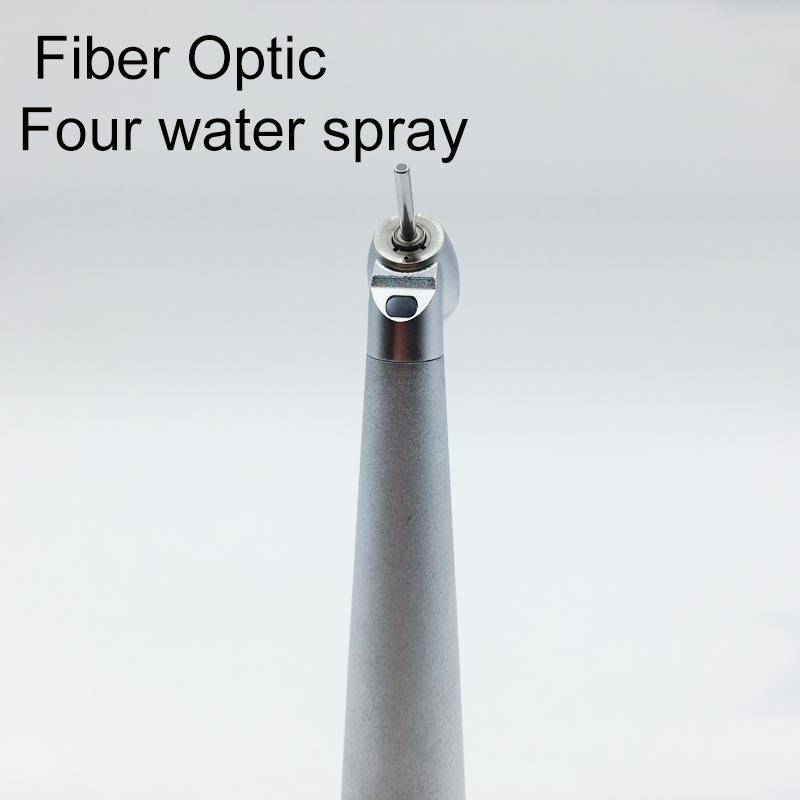

2. Built-In Shadow-Free Fiber Optic LED Illumination

   High-transmittance integrated fiber optic light offers uniform bright shadowless lighting, clearly displaying deep surgical cavities and improving dentists’ operation accuracy.

3. Silent High-Durability Ceramic Bearing Cartridge

   High-precision ceramic ball bearing rotor supports rotation speed from 350,000 to 450,000 RPM. Ultra-low noise ≤65dB, stable cutting torque and outstanding wear resistance to extend service life under heavy surgical workloads.

4. Single Targeted Water Spray Cooling System

   Single water outlet effectively cools burs during cutting, prevents pulp overheating and reduces patient discomfort in surgical procedures.

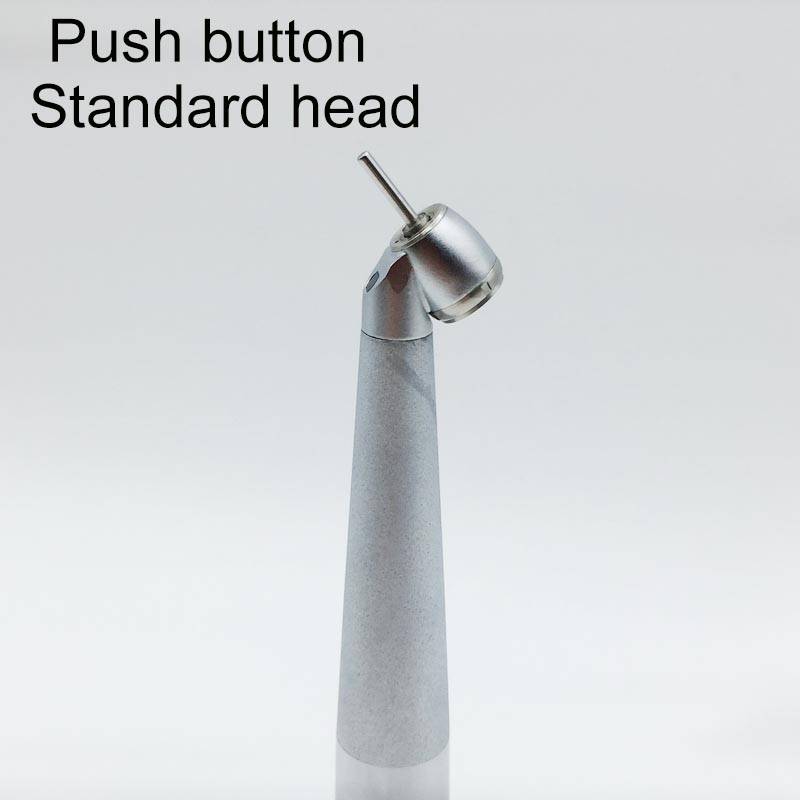

5. One-Click Push Button Bur Chuck Mechanism

   Tool-free bur loading and unloading. Stable clamping prevents burs from shaking or falling off under high speed, convenient for frequent bur replacement during surgery.

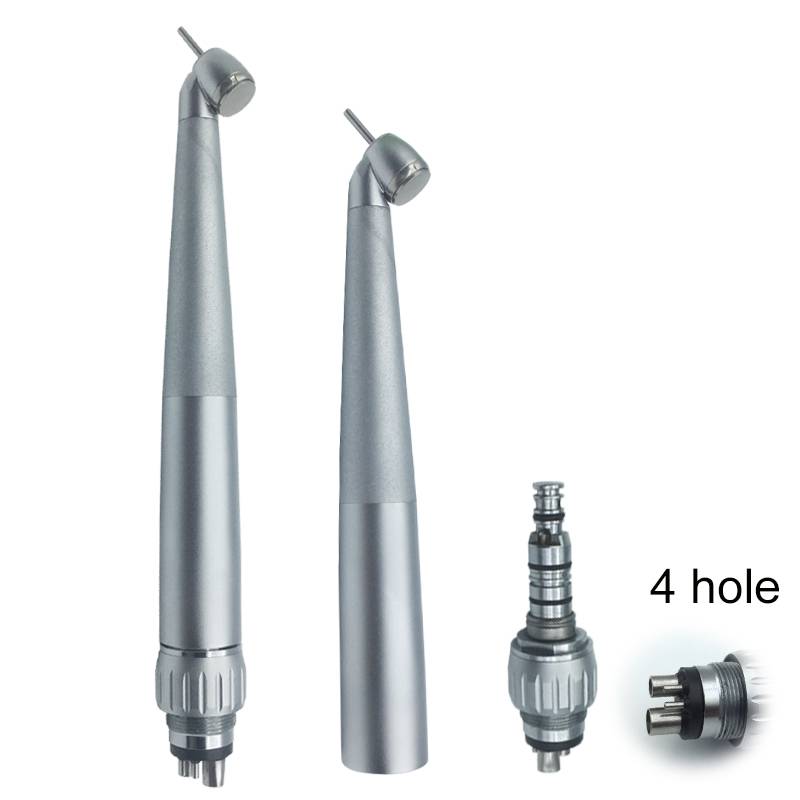

6. Multi-Type Quick Coupler Compatibility

   Optional 2-hole / 4-hole / 6-hole quick coupling connectors, compatible with most mainstream dental chair units with stable air and light transmission.

7. Lightweight Medical Aluminum Alloy Body

   Integrated matte aluminum shell, lightweight, drop-proof and corrosion-resistant. Supports repeated high-temperature autoclave sterilization. 12-month quality warranty provided.

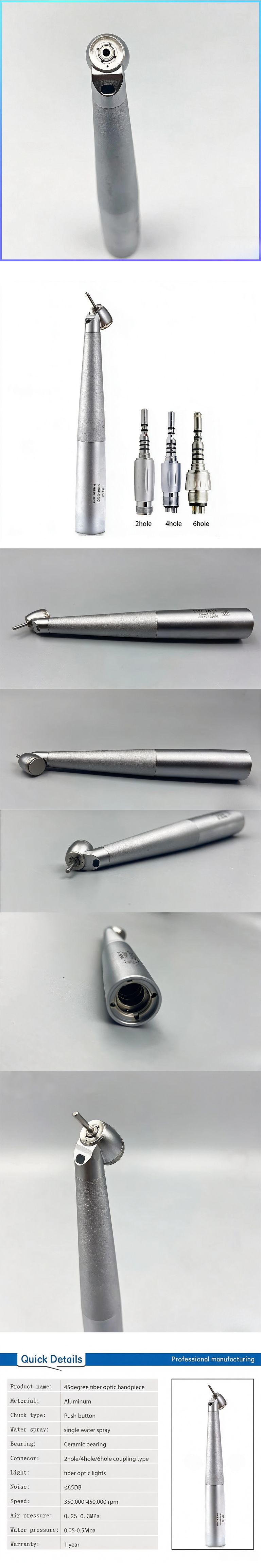

Technical Specifications

• Model: INSA-603

• Product Name: 45 Degree Mini Surgical Fiber Optic High Speed Handpiece

• Head Type: 45° Surgical Mini Head

• Bur Lock: Push button type

• Cooling System: Single water spray

• Bearing: High precision ceramic bearing

• Light Source: Built-in fiber optic LED light

• Compatible Coupler: 2-hole / 4-hole / 6-hole optional

• Shell Material: Medical aluminum alloy

• Max Rotation Speed: 350,000–450,000 rpm

• Noise Level: ≤65 DB

• Rated Air Pressure: 0.25–0.3 MPa

• Rated Water Pressure: 0.05–0.5 MPa

• Warranty Period: 12 months

Application Scenarios

Impacted wisdom molar extraction, oral implant surgery, minimally invasive surgical cutting, posterior tooth trimming and routine surgical restoration. Suitable for dental hospitals and specialized oral surgery clinics.

Package Contents

1 × INSADENTAL INSA-603 45° Surgical Fiber Optic Handpiece

Optional matching 2/4/6-hole quick coupler

Professional maintenance accessories

Custom marking service is available. We can provide test documents and certification files for bulk orders and medical tender projects. Spare turbine and bearing accessories can be supplied separately.
